Description
● Small and portable.
Applying advanced single-tube IGBT inverter technology, it is compact and easy to carry
● PWM control technology.
Full digital PWM control technology, high output power, built-in power compensator, high efficiency and energy saving;
● Digital display, easy adjustment.
Suitable for electrode welding of materials, supporting current control from 20 to 250A
● Built-in hot arc start.
Built-in hot arc start, with good impulse current effect, anti-sticking protection, arc force overload
● VRD function.
With VRD function, the output voltage is low in the absence of load, protecting against electric shock and ensuring safe use
● Stable and reliable.
Metal body made of stainless steel with ergonomic orange color for long life.
Specifications:
| Brand | Liya magnesium |
| Model | ZX7-250 |
| Input supply voltage | AC220V±15% |
| No-load voltage (V) | 60V |
| Frequency (Hz) | 50/60Hz |
| Rated power input (KVA) | 8.3KVA |
| Current Display Current Range (A) | 20A-250A |
| Output current range (A) | 30-160 |
| Duty cycle rate (%) (25℃) | 60% |
| Yield (%) | 85% |
| Power factor (COSɸ) | 0.73 |
| Insulation class | F |
| Net weight (Kg) | 1.6kg |

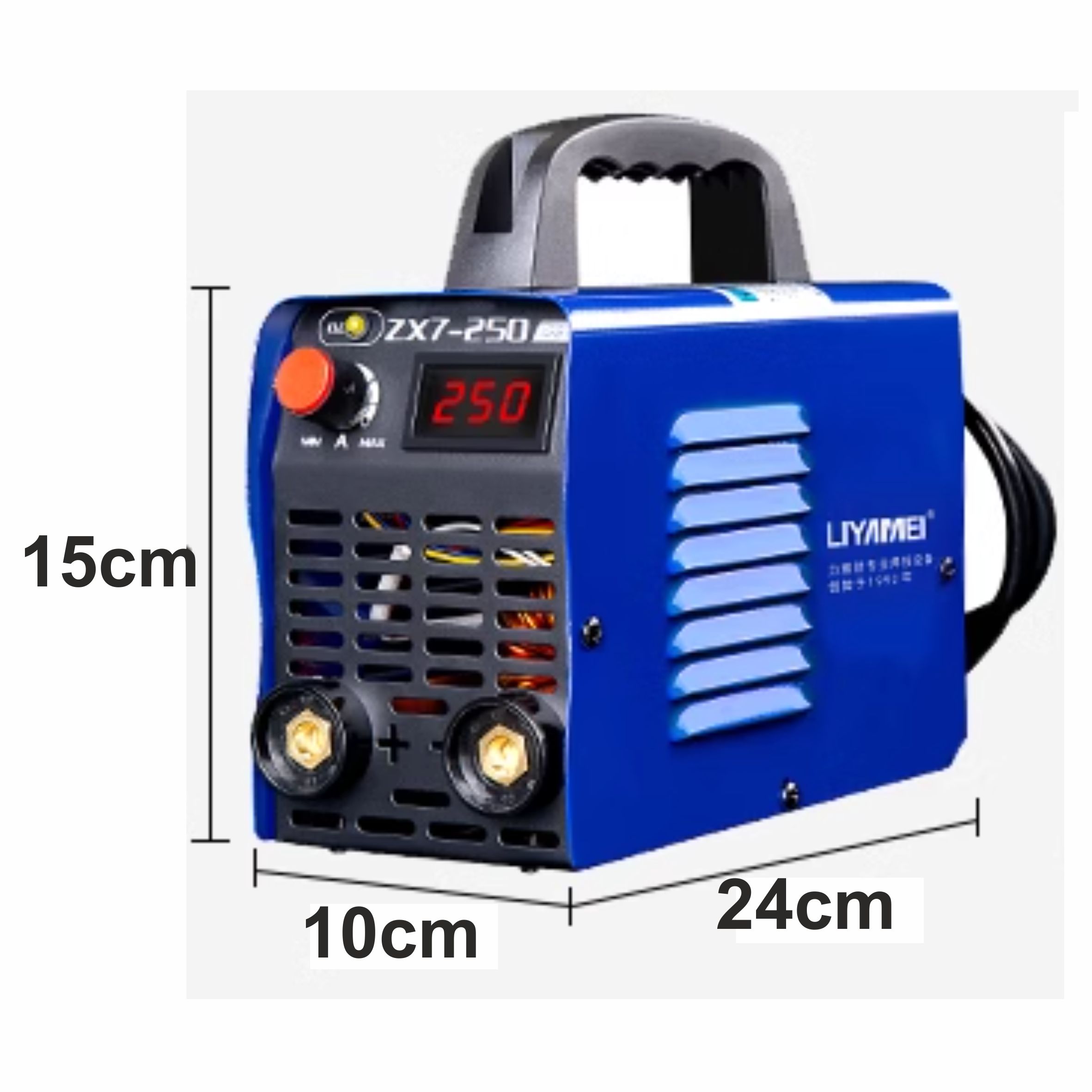

| Dimensions (MM) | 240*100*150mm |
| Electrode diameter (MM) | 1.6-2.5mm |
| Residential IP Rating | IP21 |
| Application | Electrode suitable for 2-8mm plates |

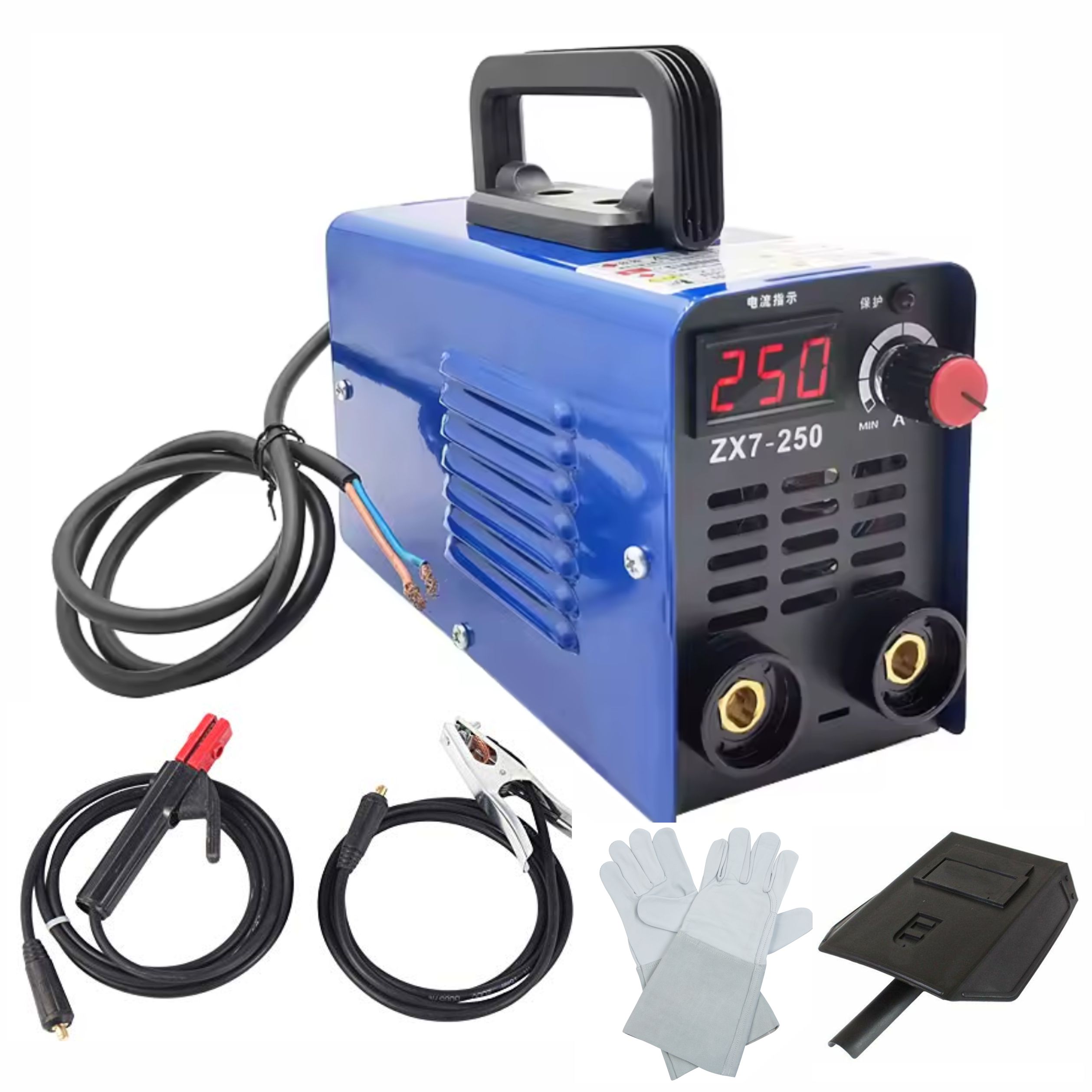

The package includes:
1 x ZX7-250 Welding Machine
1 x Electrode Quick Connector 1.8Meters
1 x Clamp Electrode 1.2 Meters
1 x Welding mask
1 x Gloves
1 x Brush set
1 x Socket 220V
