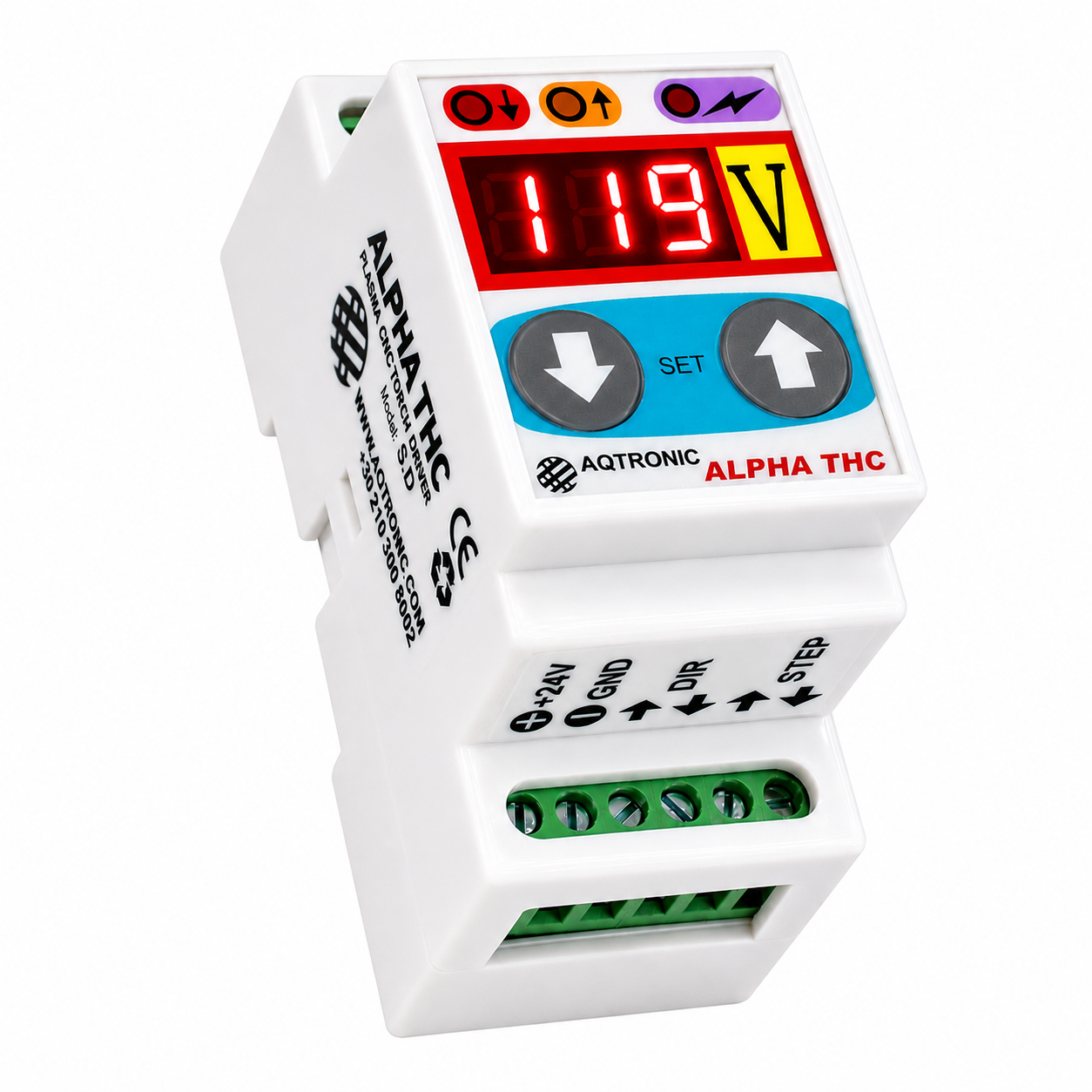

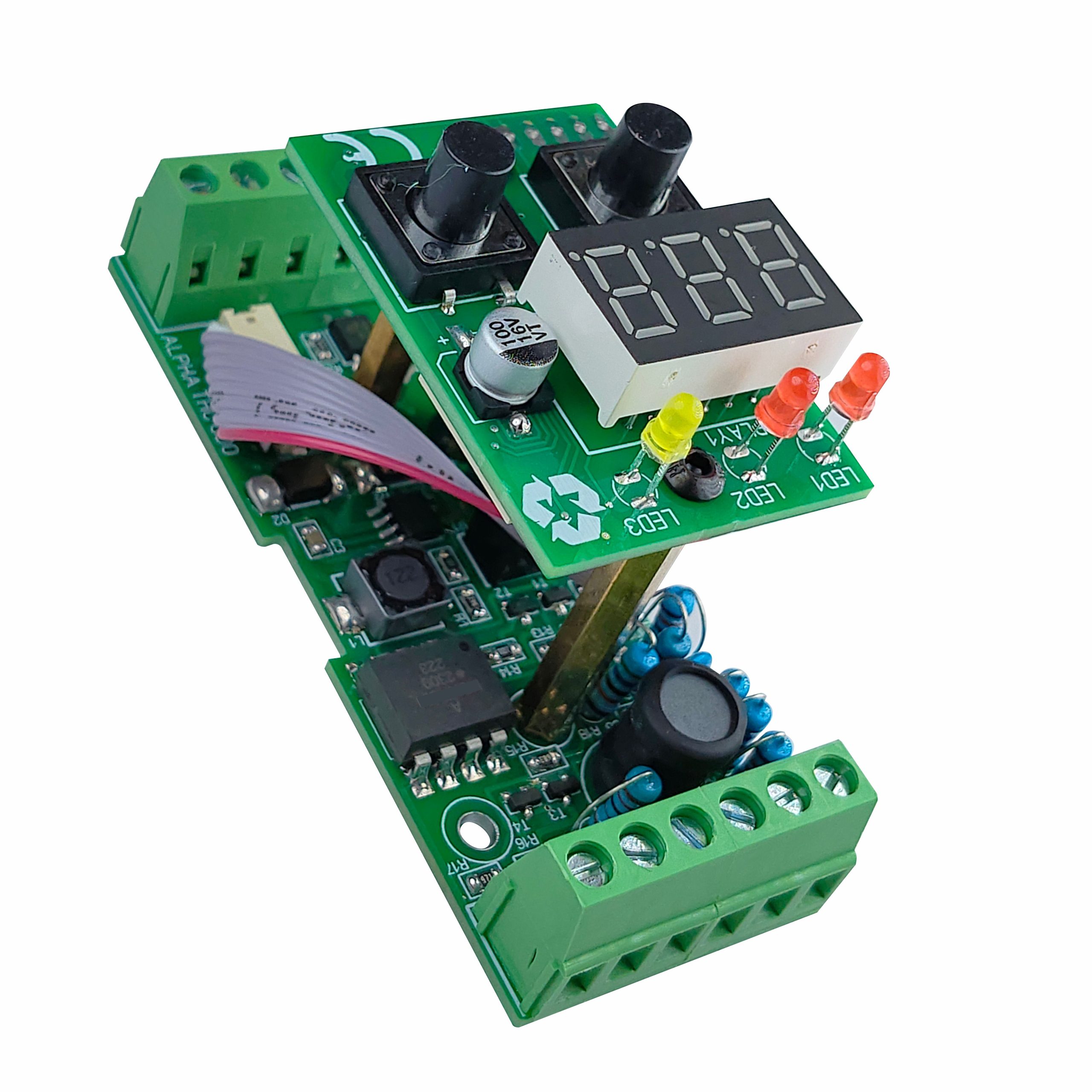

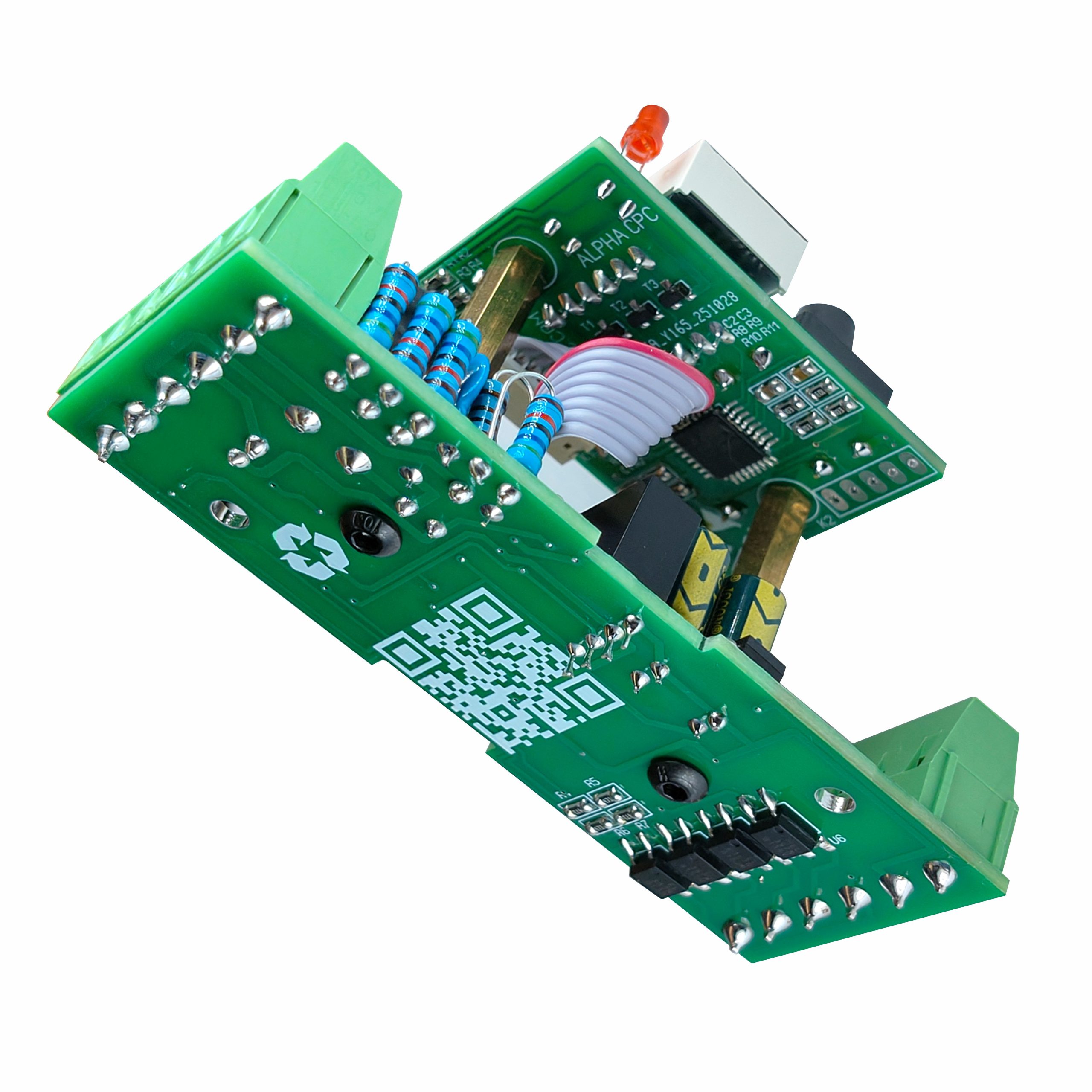

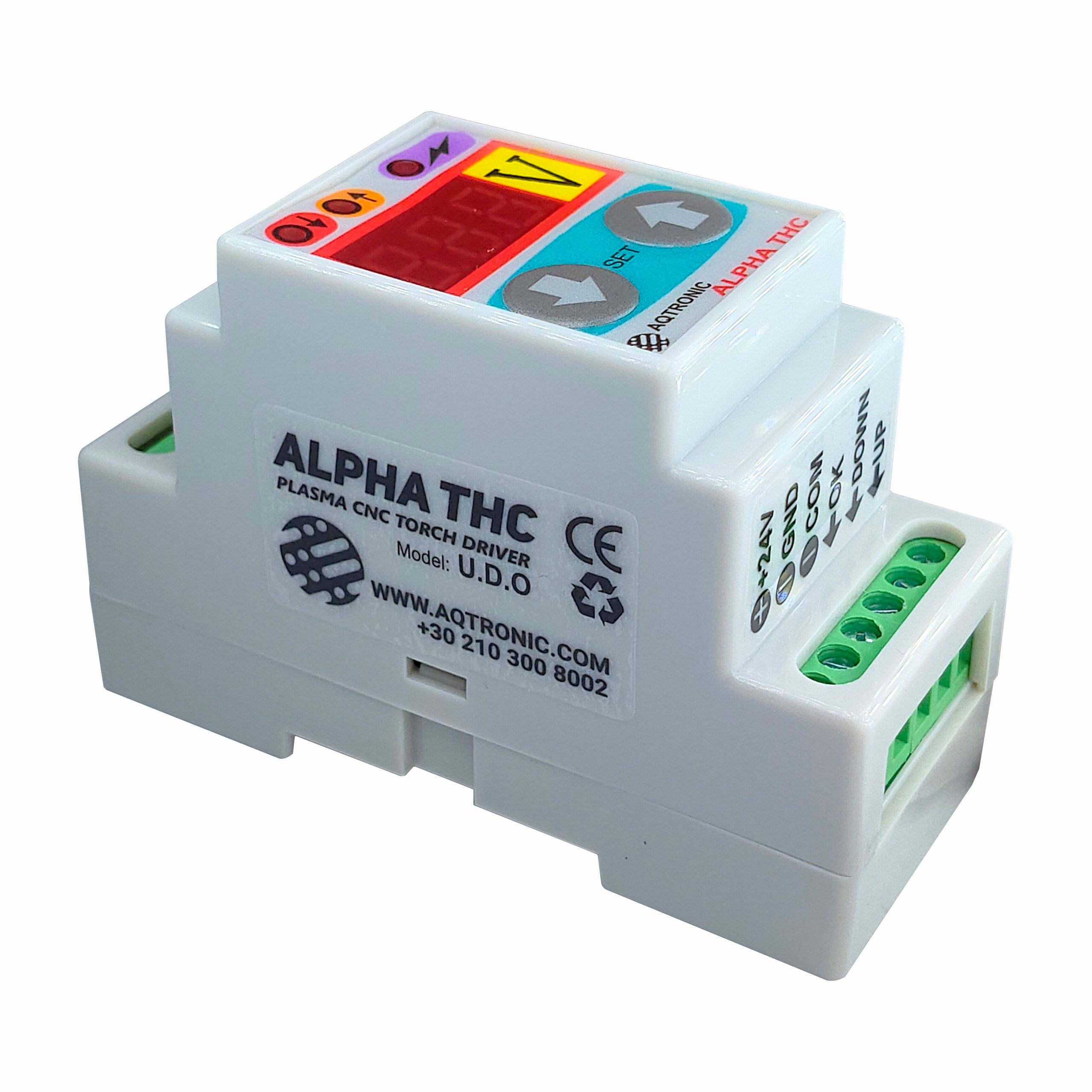

ALPHA THC SD – Professional Plasma Torch Height Controller, Step/Direction CNC THC

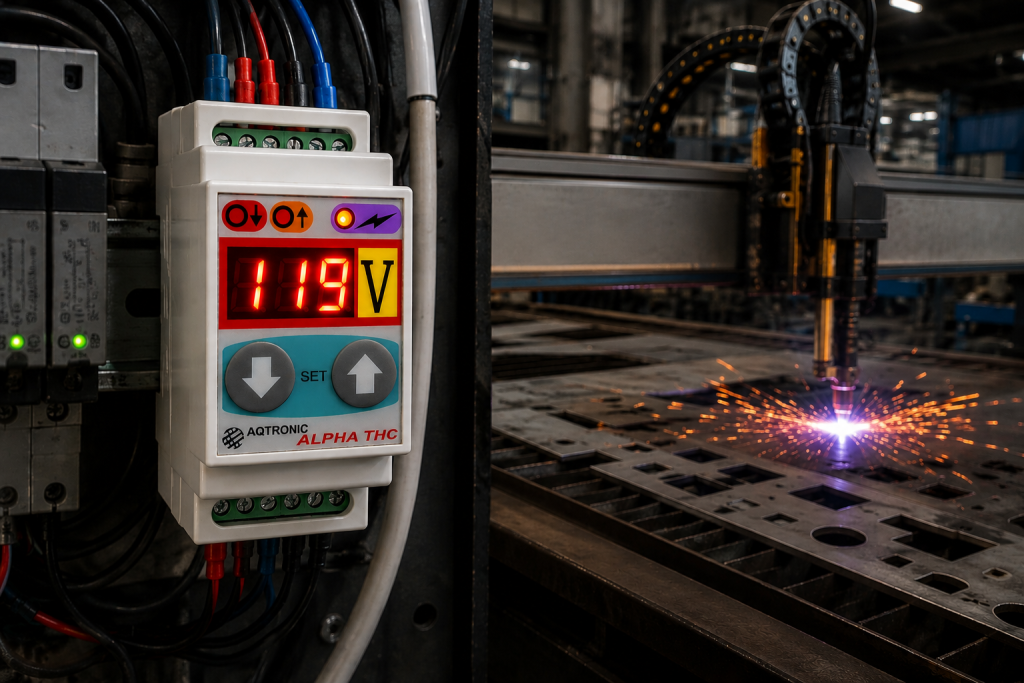

The ALPHA THC SD is a professional Plasma Torch Height Controller (THC) designed for precise and automatic torch height adjustment in CNC plasma cutting machines.

By continuously monitoring plasma arc voltage, it automatically controls Z-axis movement through STEP/DIR signals, maintaining a consistent cutting distance for improved cutting quality.

Featuring Anti-Dive protection, adjustable control parameters, and optically isolated interfaces, ALPHA THC SD provides reliable and responsive performance for CNC plasma applications.

Key Features

  • Automatic Torch Height Control – Maintains consistent cutting height.

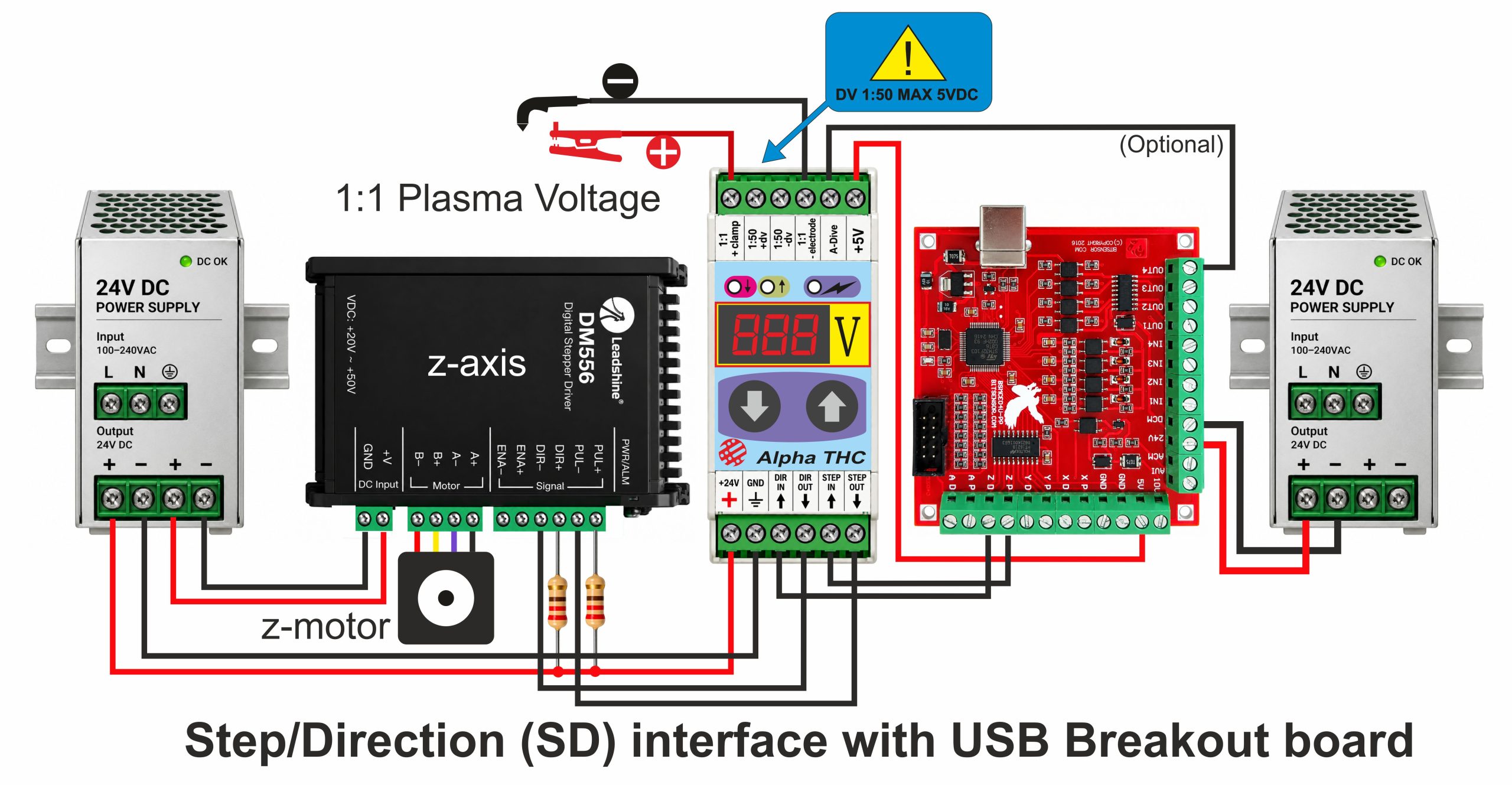

  • Step/Direction Control – Direct Z-axis motion correction through STEP/DIR signals.
  • Anti-Dive Input – Prevents unwanted torch movement during corners and speed reductions.
  • Adjustable Parameters – Speed (OSC), Hysteresis, Pierce Delay and Calibration.
  • Voltage Protection – Adjustable Low and High Voltage Cut limits.
  • Optically Isolated Interface – Improved electrical isolation for CNC systems.
  • Built-in Test Function – Allows Z-axis movement verification without cutting.
  • CNC Compatibility – Suitable for Mach3 and compatible motion control systems.

Technical Specifications

Parameter Specification
Supply Voltage 12–48VDC (24V nominal)
Current Consumption 10–20mA
Plasma Voltage Input 40–400VDC
Supported Voltage Ratios 1:1 / 1:50
Control Interface STEP / DIRECTION
Anti-Dive Input Active-LOW
Electrical Isolation Optically isolated
Mounting DIN Rail

ALPHA THC SD is an ideal solution for CNC plasma machines requiring accurate, fast and dependable automatic torch height control.
