CGX Double rail linear module SFU1610 effective travel 200MM including 57Motor

€110,36 incl. VATΣυμπεριλαμβάνεται ΦΠΑ: 24%

2 in stock

2 in stock

Product code:A2289

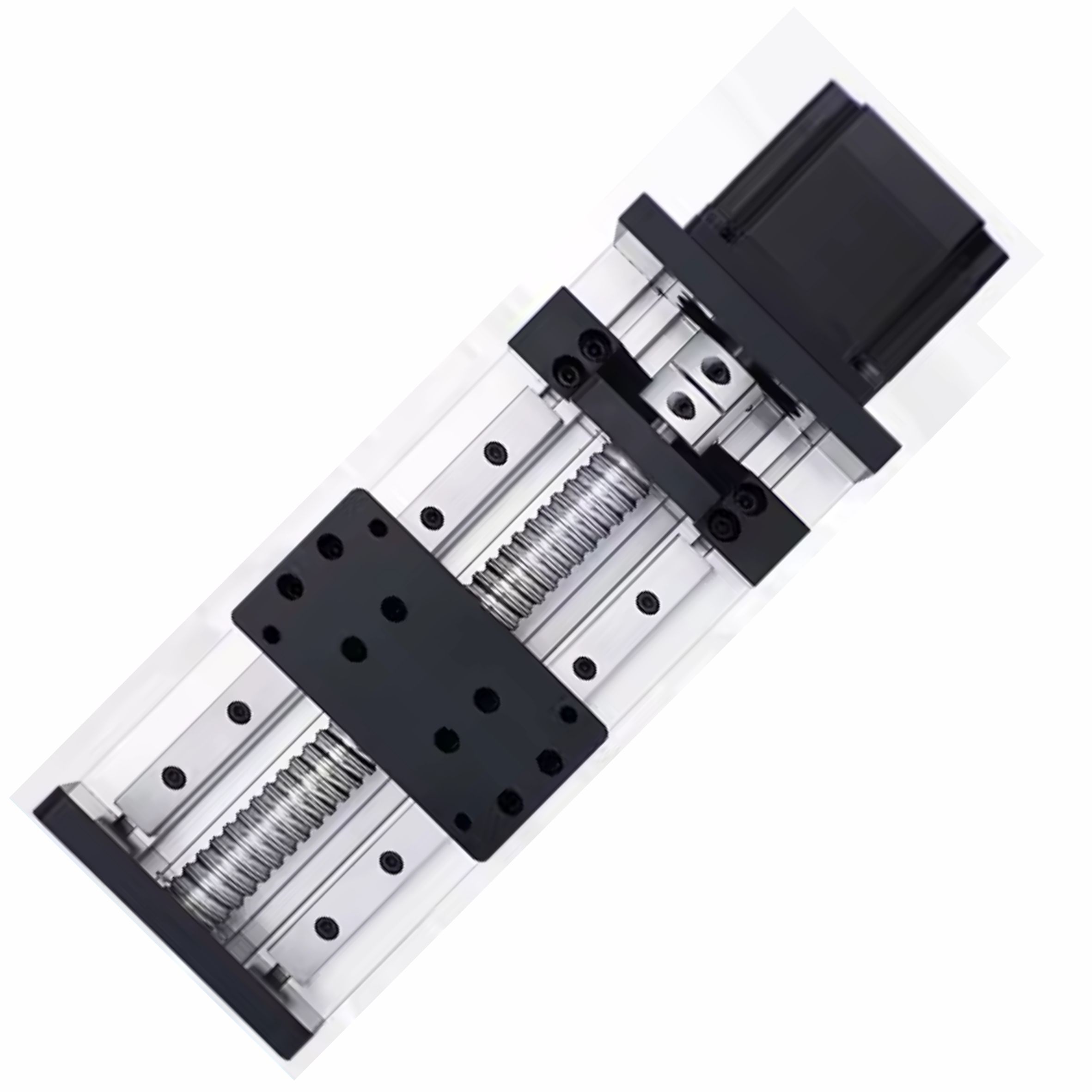

CGX dual-rail linear module with an SFU1610 ball screw, 200 mm of usable travel and a 3.0 A NEMA 23 stepper motor.

The CGX module combines two guide rails and an SFU1610 ball screw for a CNC linear axis. It includes a 3.0 A NEMA 23 stepper motor and provides 200 mm of usable travel.

View full size

ModuleCGX dual-rail unit
Ball screwSFU1610
Effective travel200 mm
MotorNEMA 23, listed at 3.0 A
Weight 5 kg
Dimensions 45 × 20 × 20 cm
Voltage

220V, 380V
