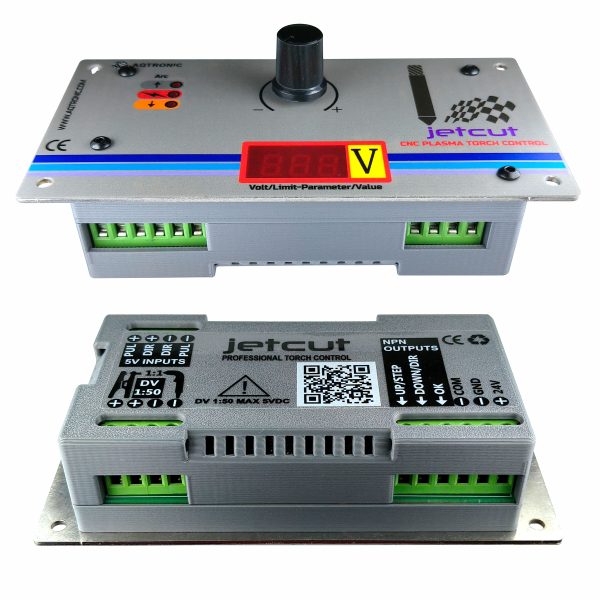

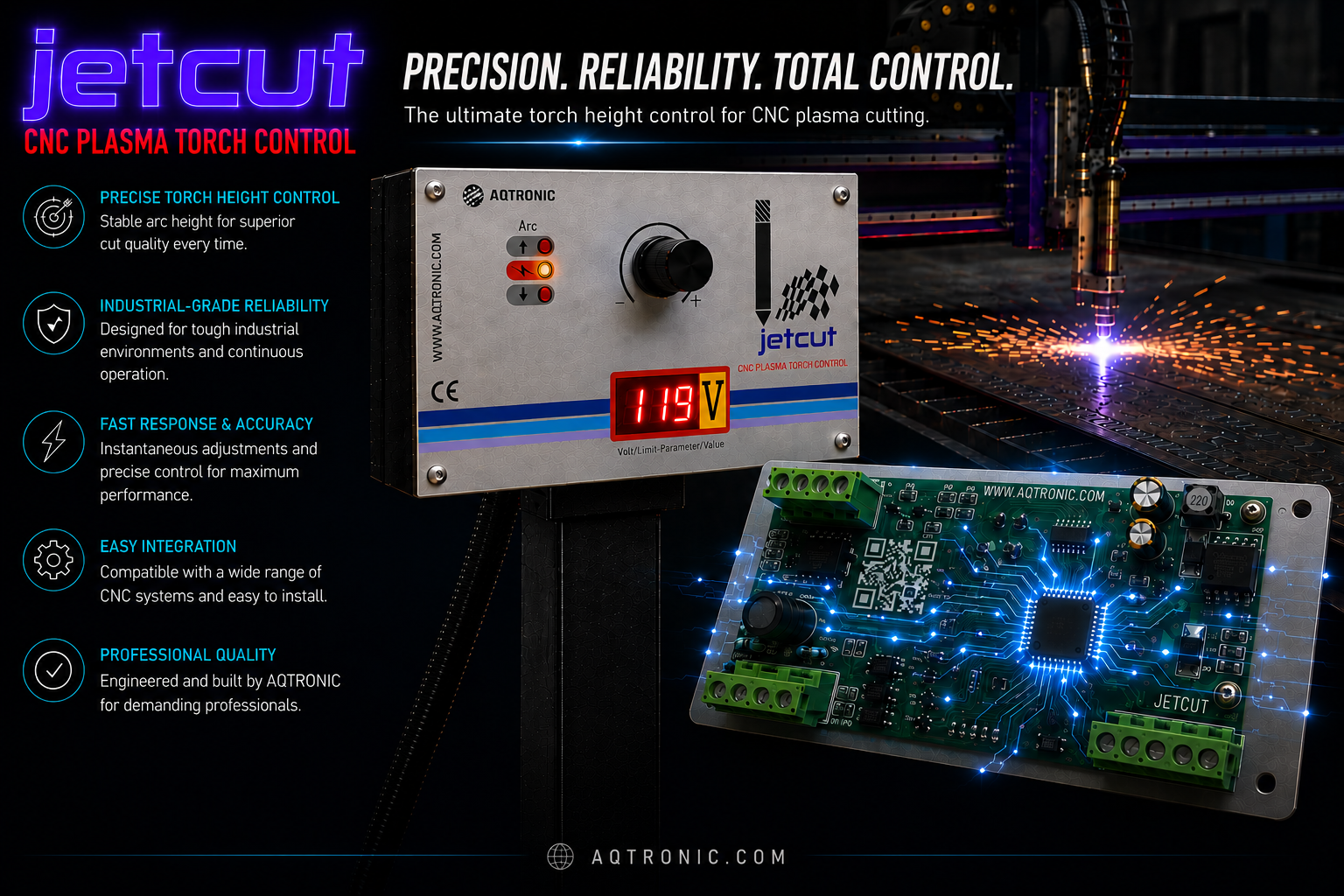

JetCut CNC Plasma Torch Height Controller (THC) – Step/Direction & UP/DOWN/OK

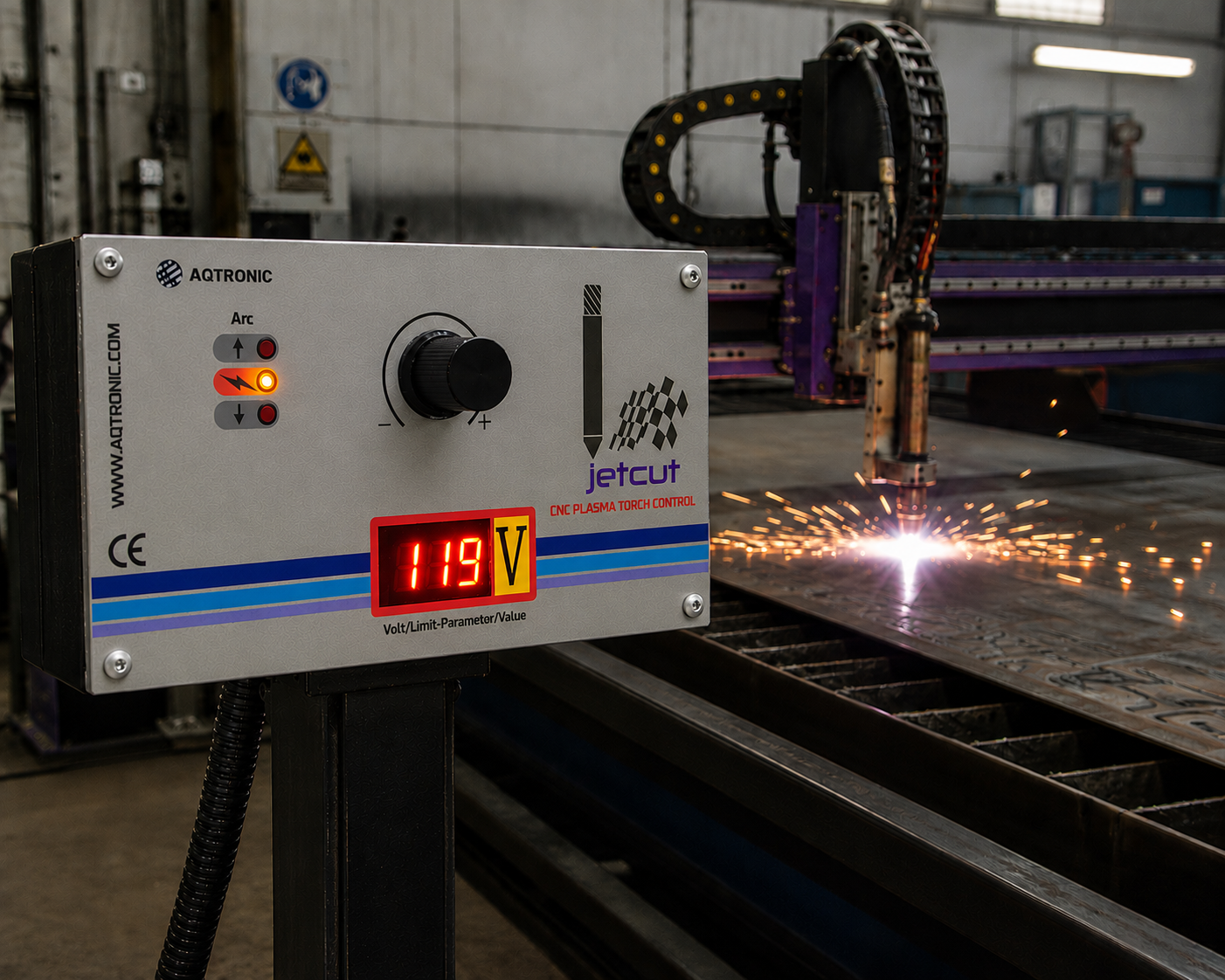

The JetCut Plasma Torch Height Controller (THC) is an advanced electronic system designed for precise and automatic torch height adjustment in CNC plasma cutting machines.
By continuously monitoring Plasma Voltage and comparing it with the adjustable Target Voltage, JetCut maintains a consistent cutting distance, improving cutting quality and reducing unwanted torch movements.
Featuring dual control modes, Anti-Dive protection, optically isolated outputs, and an intuitive rotary control knob, JetCut offers reliable performance and easy integration with CNC systems.
Key Features
- Automatic Torch Height Control – Maintains consistent cutting height.

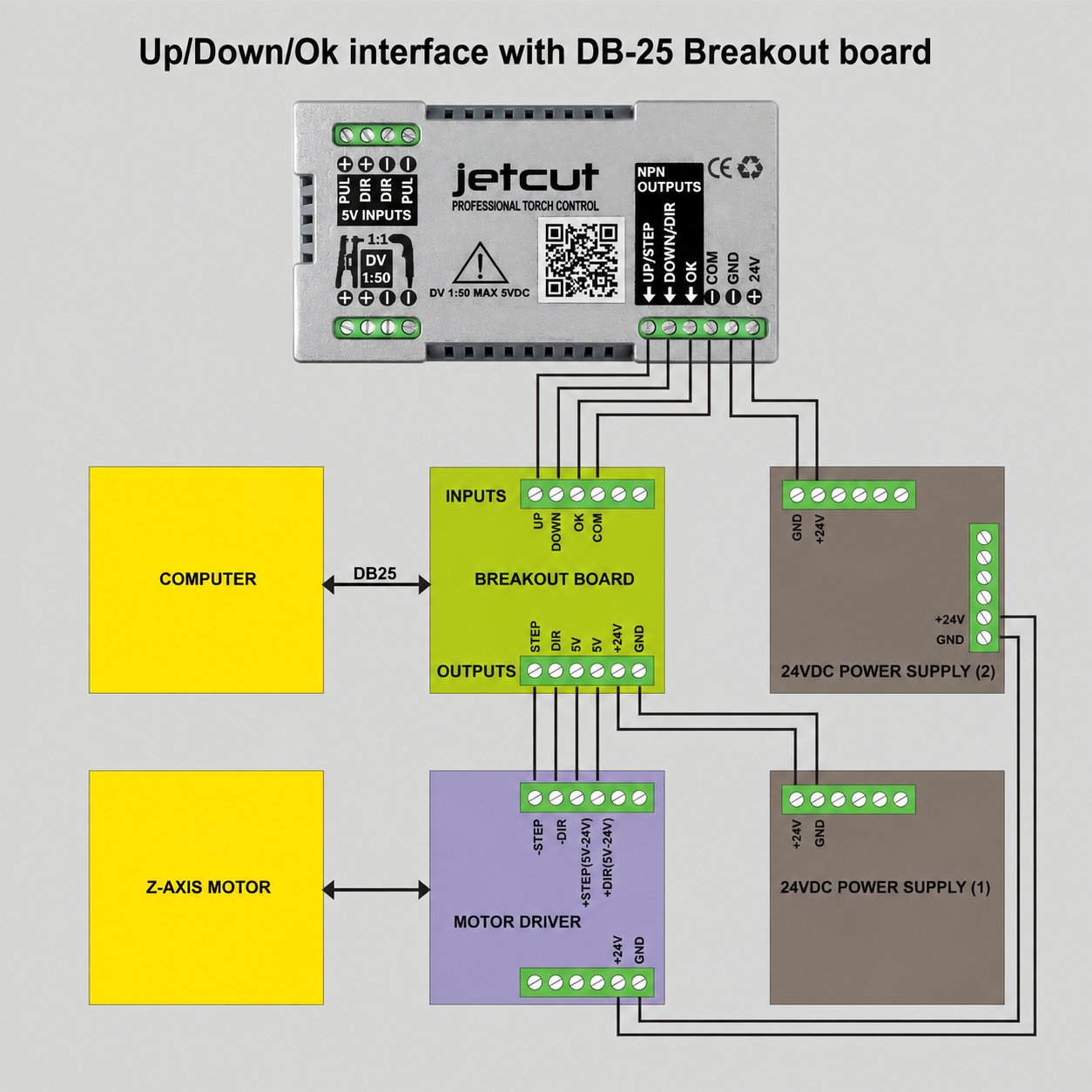

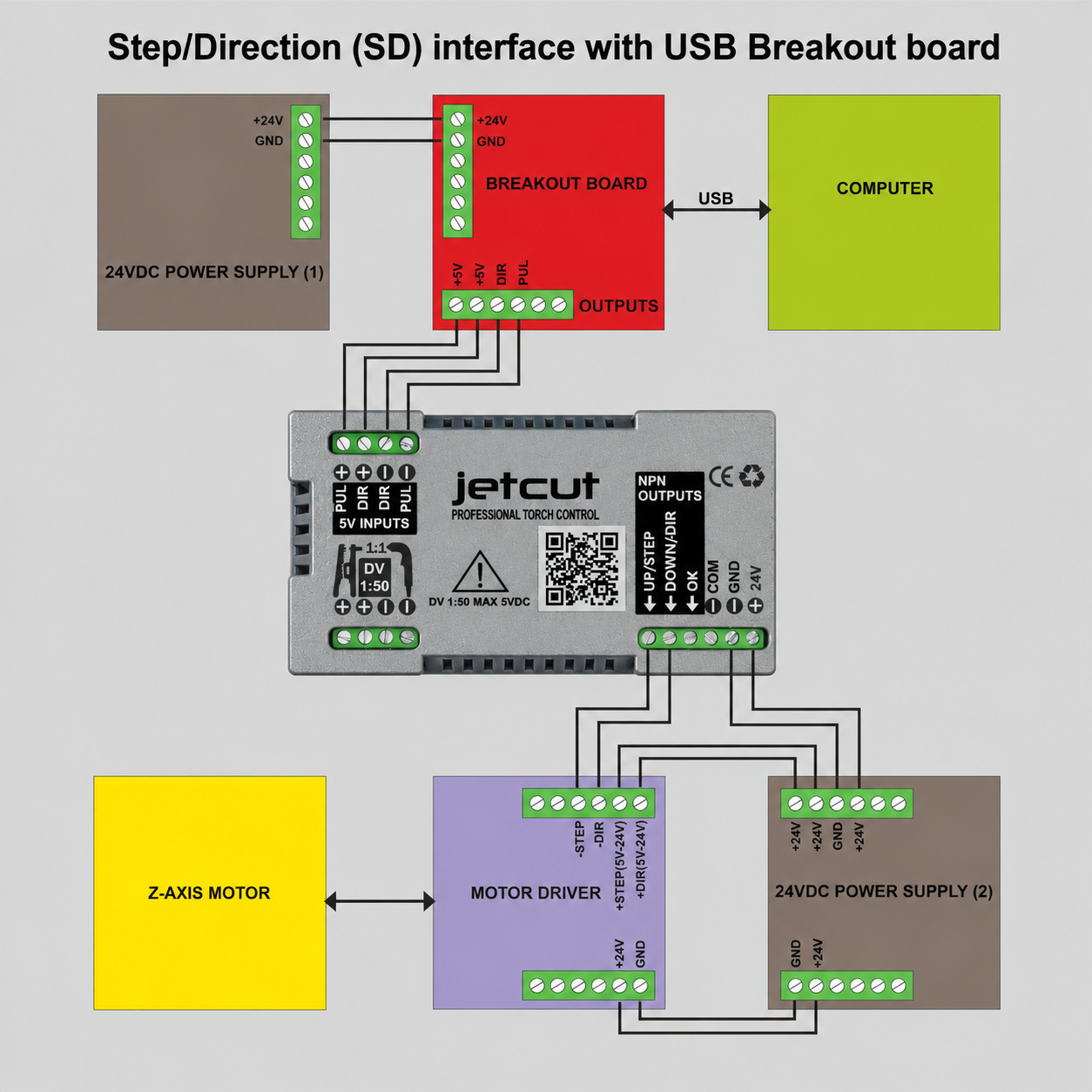

- Dual Control Modes – UP/DOWN/OK (OSC = 0) or Step/Direction (OSC = 1–14).
- Adjustable Z-Axis Speed – Stepper motor correction speed adjustable through OSC.
- Anti-Dive Protection – Prevents unwanted torch movement during sudden arc voltage increases.
- Adjustable Parameters – Hysteresis, Pierce Delay, Calibration and Low Voltage Cut.

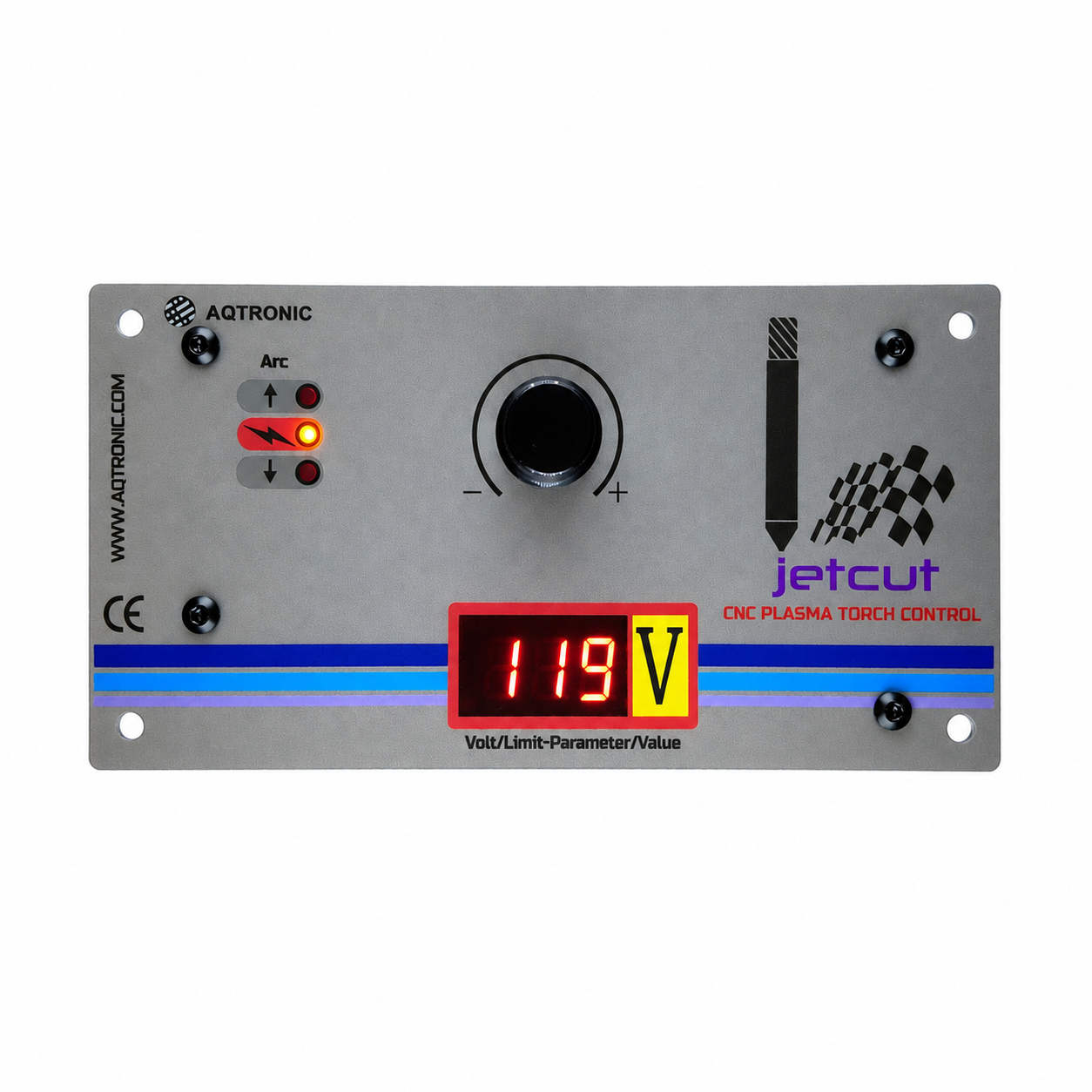

- Digital LED Display – Real-time voltage monitoring and parameter adjustment.
- Optically Isolated Outputs – Reliable signal interface for CNC controllers.
- Plasma Voltage Inputs – Supports 1:1 direct and 1:50 divided-voltage connections.
Technical Specifications
| Parameter | Specification |
|---|---|
| Supply Voltage | 24VDC (12-48VDC) |
| Maximum Plasma Voltage Input | 600VDC |
| Supported Voltage Ratios | 1:1 / 1:50 |
| Control Modes | UP/DOWN/OK / STEP-DIR |
| Control Outputs | Optically isolated NPN |
| Display | 3-digit LED |
| Dimensions | 140 × 70 × 50 mm |
| Weight | 200g |
JetCut THC is an ideal solution for professional CNC plasma cutting systems requiring accurate, responsive, and dependable automatic torch height control.
