SFU1610 BallScrew C7 End Machined L500-900-1100-1300 Anti backlash High precision ballscrew + nut

SFU1610 BallScrew C7 End Machined L500-900-1100-1300 Anti backlash High precision ballscrew + nut

Price range: €80,84 through €117,19 incl. VATΣυμπεριλαμβάνεται ΦΠΑ: 24%

3 in stock

Product code:A2241

View full size



Product Description:

The Ball Screw is made of the screw and ball nut. Its function is to turn the rotary motion into linear motion which is a future extension and development of the ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little friction, Ball Screw are widely used in various industrial equipment and precision instruments

Application:

Ball Screw is widely used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and an automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. They are also used in machine tools, robots, and precision assembly equipment. High precision ball screws are used in steppers for semiconductor manufacturing



ModelSFU1610
Screw diameter16 mm
Lead10 mm per revolution
Listed precision gradeC7
Overall length options500, 900, 1,100 or 1,300 mm

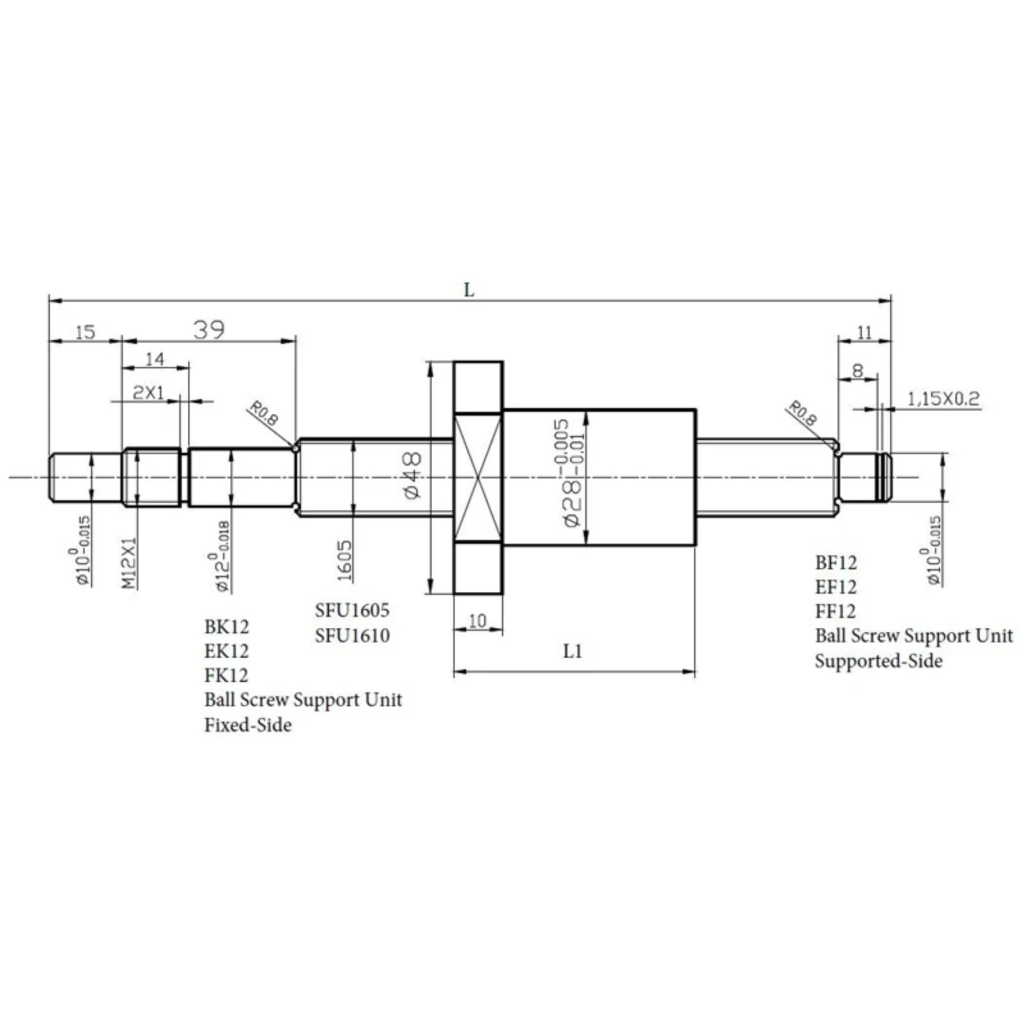

End conditionMachined ends, ball nut included
Weight 8,5 kg
Dimensions 30 × 9 × 9 cm
Length

900, 1100, 1300, 500
