2CH Optocoupler PC817 2 Channel Isolation Board Voltage Converter Adapter Module 3.6-30V Driver Photoelectric Isolated Module

€1,93 incl. VATΣυμπεριλαμβάνεται ΦΠΑ: 24%

28 in stock

28 in stock

Product code:A2325

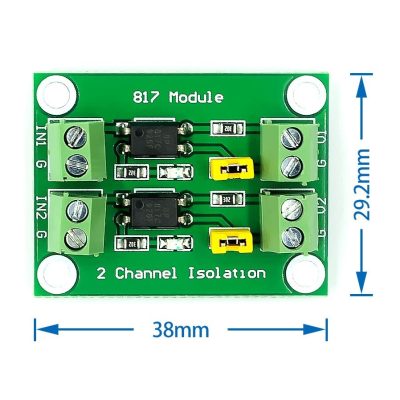

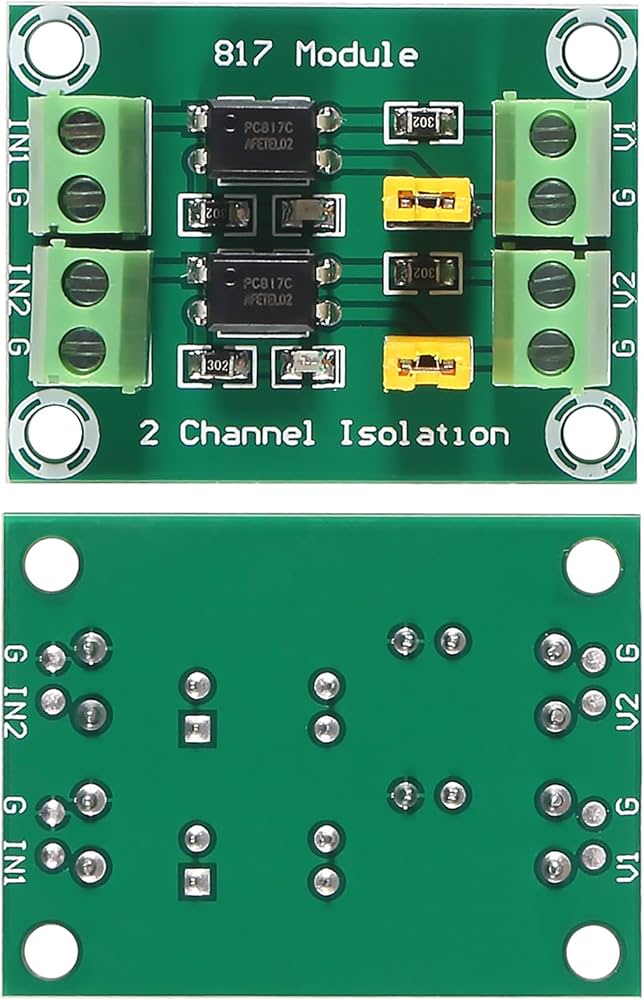

Two-channel PC817 optocoupler board for isolating low-frequency control signals, with independent channels and jumper-selectable output logic.

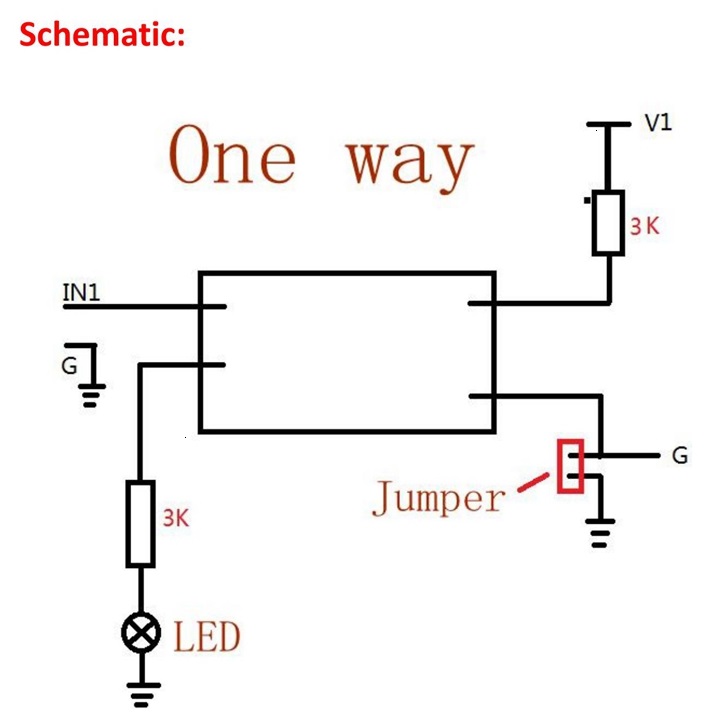

The two independent PC817 channels isolate control inputs from compatible output circuits. Each channel can be used with a different voltage. A jumper selects high- or low-level output operation.

  • Input range: 3.6–24 V.
  • Output-side voltage range: 3.6–30 V.
  • Pulse frequency: below 4 kHz.

Check the input threshold and output current before connecting a controller, transistor or relay.

Number of channels2
Optocoupler familyPC817
Board input3.6–24 V
Output-side voltage3.6–30 V
Pulse frequencyBelow 4 kHz
Board isolationUse verified module-level ratings for the complete assembly.
Weight 0,05 kg
Dimensions 5 × 5 × 2 cm
